Soft-Glo Remote Light Driver Module

Request Quote ➟

Overview

3051071

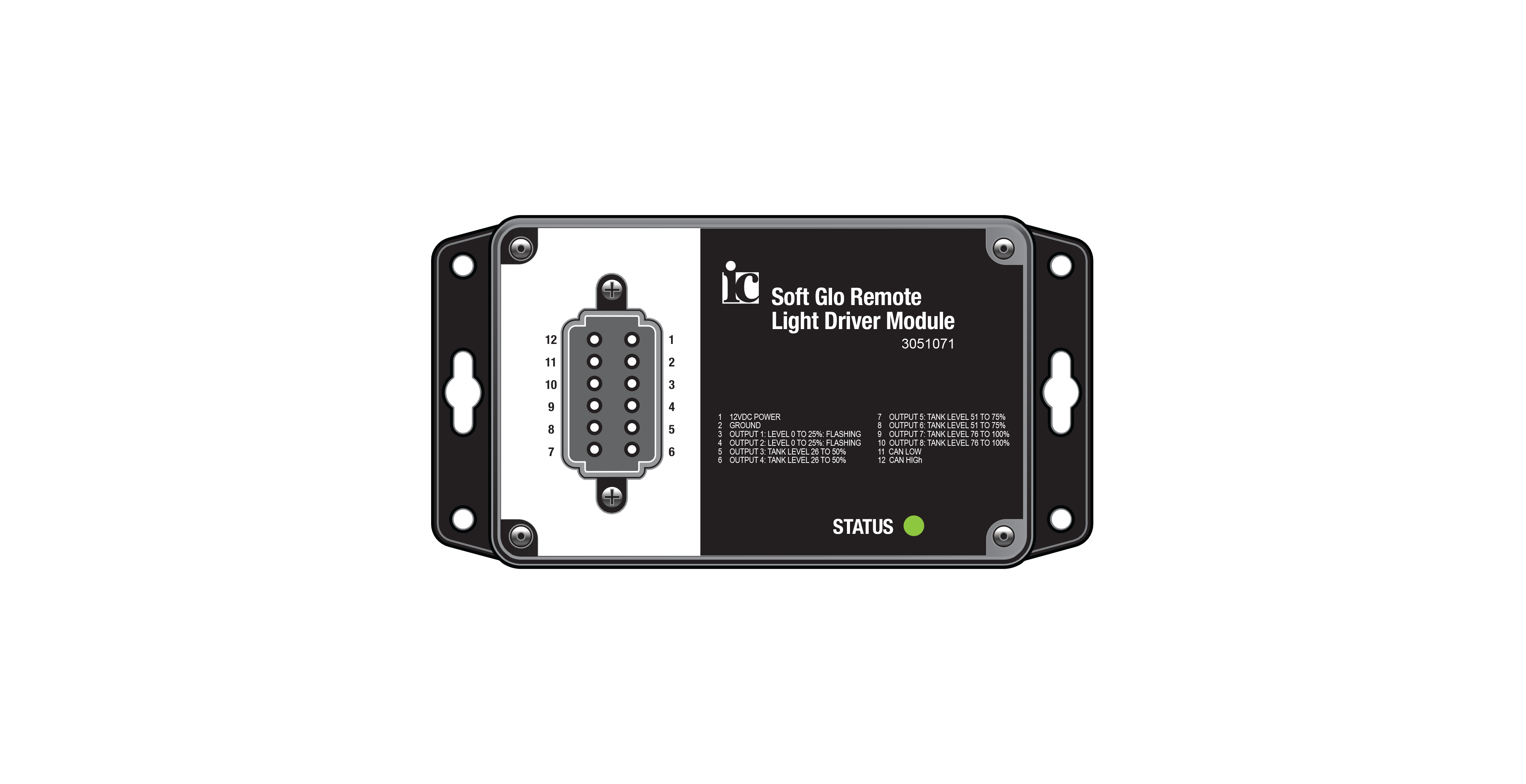

The 3051071 Soft-Glo Remote Light Driver Module is used to interface Soft Glo master tank level gauges with discrete lamps.

The Remote Light Driver Module connects to the Soft Glo J1939 CAN link. The module’s 8 high-side outputs mirror the 4 tank levels on the master gauge, each tank level state has 2 independent outputs to simplify wiring of multiple lamps. The module’s outputs can be used to control lamps, alarms, or tank autofill system valves. The total current output is limited to 13A.

The Soft-Glo Remote Light Driver Module can be confgured during system calibration to monitor 1 of 8 different master level gauges on the same CAN link.

The Soft-Glo Remote Light Driver Module performs a lamp test when powered on where each output is individually turned on to provide operators with an at-a-glance check of the lamp circuit health.

The module includes a status LED that shows the state of the CAN link.

Features

• Allows Soft-Glo master tank level gauges to control discrete lamps, alarms, and valves

• SAE J1939 CAN link operating at 250K

• 8 outputs configured to operate in pairs at 4 tank levels

• Total current output limited to 13A

• Wide operating voltage range of 7 to 40 VDC

• 4.7” x 3.2 x 1.6” watertight IP67 polycarbonate enclosure

• Watertight DT15-12PA Deutsch connector

• 40C to +85C (-40F to +185F) AEC-Q100 Grade 3 Operating Temperature
